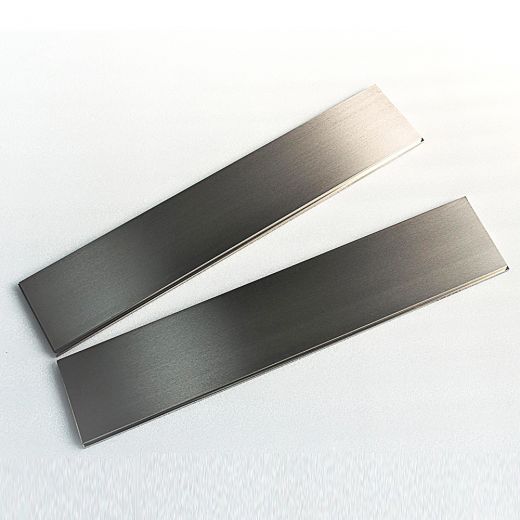

Titanium Sputtering Targets
Improve wear resistance, reduce friction coefficient and prevent adhesion. It is a kind of coating on CNC tools. The single-layer titanium nitride coating is golden yellow, Vickers hardness is about 2300hv, and the maximum service temperature is 500 ℃. It is a kind of high cost-effective coating widely used in CNC tools. It can also form composite coating with other elements such as aluminum and carbon, such as AlTiN
DESCRIPTION
Titanium is a common material used in a wide variety of products such as watches, drills, laptops and bicycles. Pure titanium is silvery-white in color and has a brilliant luster. It has a melting point of 1,660°C, a density of 4.5 g/cc and a vapor pressure of 10 -4 Torr at 1,453°C. Titanium is a strong material that is easy to work with when heated. Its strong, lightweight properties and excellent corrosion resistance make it ideal for ocean liner hulls, aircraft engines and designer jewelry. Titanium is biocompatible and can be used in surgical instruments and implants. Titanium is typically evaporated in a vacuum for wear and decorative, semiconductor and optical coatings.

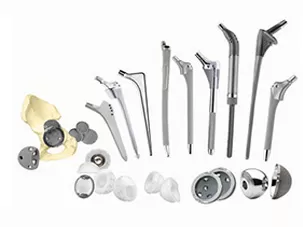

Titanium sputtering targets are a versatile material with 20 variants. They are commonly used as sputtering targets in thin film deposition processes. Titanium's high strength, light weight, corrosion resistance and biocompatibility allow it to be used for surface coatings in applications ranging from semiconductors to medical implants.
Improve wear resistance, reduce friction coefficient and prevent adhesion. It is a kind of coating on CNC tools. The single-layer titanium nitride coating is golden yellow, Vickers hardness is about 2300hv, and the maximum service temperature is 500 ℃. It is a kind of high cost-effective coating widely used in CNC tools. It can also form composite coating with other elements such as aluminum and carbon, such as AlTiN

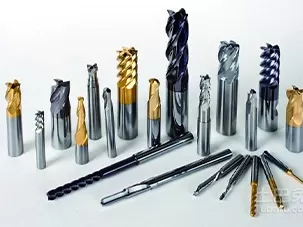

Thanks to their economy and reliability against wear, titanium(Ti) and zirconium(Zr) are widely used as the coatings of drills, milling machines and other tools. Moreover, zirconium is applied in decorative coatings. We supply both materials as sputtering targets with the finished products and semi-finished products.
We can supply planar, rotary titanium-zirconium targets and customized titanium-zirconium targets.
High Density
Optimal, homogeneous microstructure
Highest material purity
Excellent product quality
| Data 1: chemical compostion of Titanium target | |||||||
| Item: | N ≤ | C ≤ | H ≤ | Fe ≤ | 。 ≤ | AI ≤ | V ≤ |
| GR1 | 0.03 | 0.08 | 0.05 | 0.2 | 0.18 | ||
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | ||
| GR3 | 0.03 | 0.08 | 0.015 | 0.3 | 0.35 | ||
| GR4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | ||
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 |
| GR6 | 0.03 | 0.08 | 0.015 | 0.3 | 0.2 | 4.0-4.6 | |
| GR7 | 0.03 | 0.08 | 0.015 | 0.5 | 0.25 | ||
| GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 |
| GR11 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | ||
| GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | ||
| Date sheet 1: Purity grades in different countries | ||||
| Chemical formula | China | America | Russia | Japan |
| Industrial pure titanium | TA1 | GR1 | BT1-0 | TP270 |
| Industrial pure titanium | TA1-1 | GR1 | BT1-100 | |
| Industrial pure titanium | TA2 | GR2 | TP340 | |
| Industrial pure titanium | TA3 | GR3 | TP450 | |
| Industrial pure titanium | TA4 | GR4 | TP550 | |
| Ti-5AL-2.5Sn | TA7 | GR6 | BT5-1 | TP5250 |
| Ti-0.05Pd | TA8 | GR16 | ||
| Ti-0.05Pd | TA8-1 | GR17 | ||
| Ti-0.2Pd | TA9 | GR7 | TP340pb | |
| Ti-0.2Pd | TA9-1 | GR11 | ||
| Ti-0.3Mo-0.8Ni | TA10 | GR12 | ||
| Ti-8AL-1Mo-1V | TA11 | Ti-811 | ||
| Ti-6.5AL-1Mo-1V-2Zr | TA15 | |||
Improve wear resistance, reduce friction coefficient and prevent adhesion. It is a kind of coating on CNC tools. The single-layer titanium nitride coating is golden yellow, Vickers hardness is about 2300hv, and the maximum service temperature is 500 ℃. It is a kind of high cost-effective coating widely used in CNC tools. It can also form composite coating with other elements such as aluminum and carbon, such as AlTiN
