Jun. 20, 2024
PVD Coatings: Physical Vapour Deposition
PVD – acronym for Physical Vapor Deposition – is an environmental friendly high vacuum coating technology for thin film deposition on different kinds of base materials in plasma atmosphere. During the process, inside a vacuum chamber, different metals – like titanium, zirconium and chrome – are vaporized and then condensed on the product’s surface creating the desired coating.
PVD coating is particularly recommended for innovative high quality products which require excellent chemical and technical features (like high hardness, resistance to abrasion, scratches, and corrosion) and, at the same time, offers a wide choice of colors. There are two different coating families: TECHNICAL PVD and DECORATIVE PVD.
PECVD and DLC Coatings
PECVD – acronym for Plasma Enhanced Chemical Deposition – is another envirinmental friendly technology for high vacuum thin film deposition. In PECVD the coating material is contained in gas or vapor (precursor) molecules, those are cracked by the plasma action and the material become available for deposition.
For example, a classic coating with PECVD technology is DLC, Diamond Like Carbon.
DLC Coatings
DLC is an innovative coating with high Carbon bonds sp3 (diamond like) where the Carbon comes from the plasma cracking of a hydrocarbon gas. DLC is used in different applications to increase, for example, abrasion resistance. Moreover, other important characteristics are high hardness, low friction coefficient and high performances in corrosive ambient. There are different DLC coating families depending on applications.
Cathodic Arc Evaporation
Cathodic arc process is the most used in PVD coating. In this process a glow discharge runs on the solid metal (target) surface causing evaporation of metal. Evaporated highly ionized metal re-combines with process gas (in plasma form) to create a thin film deposit on products rotating inside the vacuum chamber. CAE target can be circular or rectangular.
Magnetron Sputtering(MS)
In MS argon gas accelerated ions impact on a solid metal (target) causing ejection (evaporation) of material by mechanical action. Also in this case evaporated metal can recombine with process gas (in plasma form) to create a thin film deposit on products rotating inside the vacuum chamber (reactive sputtering). There are different possible Magnetron Sputtering configurations: Balanced Magnetron Sputtering, Dual Magnetron Sputtering (DMS), Dual Pulsed Magnetron Sputtering, Unbalanced Magnetron Sputtering (UBM), RF Magnetron Sputtering, HIPIMS, etc. depending on the power source and magnetic field configuration. Target geometry can be planar, circular or in some cases also cylindrical.
Previous
PVD Thin Film Coating for Hardware Tool and MouldNext
NoneRELATED PRODUCTS
Thanks to its excellent corrosion resistance and wear resistance, the hard material coatings chromium(Cr) is widely used in combustion equipment and high-temperature fuel cells. Furthermore, our chromium is also used in appliances and jewelry. Because it gives them an attractive sheen when used as a decorative coating.
Our titanium-aluminum(TiAl) targets are used for decorative coatings on electronic devices. In addition, thanks to the resistance to oxidation and toughness, our titanium-aluminum targets are also widely used as the coatings of milling machines, drills and other tools.
Thanks to the toughness, high thermal stability and resistance to oxidation, our chromium-aluminum (CrAl) targets are widely used as the coatings of milling machines, drills and other tools.
RELATED NEWS
Jun. 20, 2024
PVD – acronym for Physical Vapor Deposition – is an environmental friendly high vacuum coating technology for thin film deposition on different kinds of base materials in plasma atmosphere.
Jun. 20, 2024

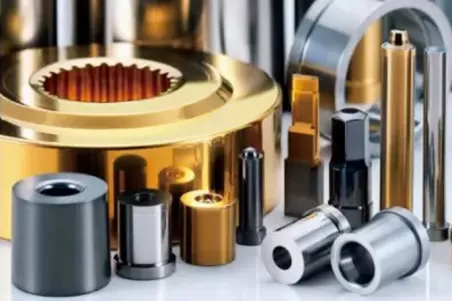

PVD Thin Film Coating for Hardware Tool and Mould
