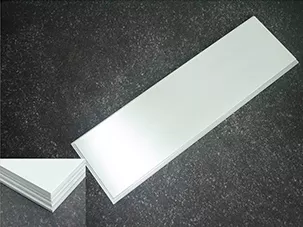

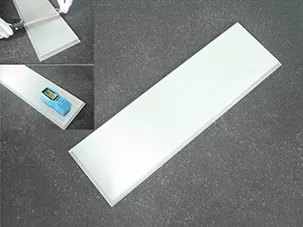

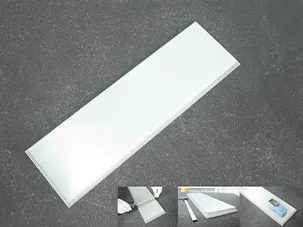

CrAl Sputtering Target
Thanks to the toughness, high thermal stability and resistance to oxidation, our chromium-aluminum (CrAl) targets are widely used as the coatings of milling machines, drills and other tools. The chromium-aluminum coatings significantly enhance the metal removal rates, feed speeds and cutting performance and extend the service life.
DESCRIPTION
Thanks to the toughness, high thermal stability and resistance to oxidation, our chromium-aluminum (CrAl) targets are widely used as the coatings of milling machines, drills and other tools. The chromium-aluminum coatings significantly enhance the metal removal rates, feed speeds and cutting performance and extend the service life.
We can supply planar, rotary chromium-aluminum targets and customized chromium-aluminum targets.
The important details of chromium-aluminum
If you use our chromium-aluminum targets, our HIP technology will guarantee that remarkably fewer droplets are formed on your products during coating. So our chromium-aluminum targets keep your coatings smoother.
Popular Usage
(1) In cutting tools coating, Such as cutting and drawing tools, various materials of pressing mold and mold, bearing, shaft,
gauge, gear, etc
(2) Protection and decoration of automobile, bicycle, sewing machine, clock, instrument, daily hardware and other parts
(3) Storage of lubricating media, prevent non lubrication operation, improve the anti friction and wear resistance of workpiece surface. It is often used to coat the surface of sliding friction parts under heavy pressure, such as internal combustion engine cylinder bore, piston ring, etc
(4) It has uniform luster, good decoration and good extinction:
Protection and decoration of parts and components of aviation instrument and optical instrument, solar absorption panel and daily necessities
AlCr 70/30at%
| Composition value | spec. | unit |
| Cr | 45.2±0.5 | wt% |
| Al | balance | wt% |
| Fe | ≤1000 | ppm |
| Si | ≤500 | ppm |
| C | ≤400 | ppm |
| N | ≤200 | ppm |
| O | ≤2000 | ppm |
| S | ≤50 | ppm |
